Autel MaxiCOM MK906S PRO 2024

The MaxiCOM MK906S PRO is an advanced smart wireless diagnostics device providing specialized automotive diagnostic service for customers. Featuring the powerful octa-core processor, an 8.0-inch TFT-LED capacitive touchscreen, and long-distance wireless communication, based on the multitasking mobile operating system, and combined with the best possible coverage of OE-level diagnostics, the MK906S Pro performs comprehensive and efficient vehicle diagnostics and analysis.

Autel MaxiCOM MK906S PRO Scanner Upgraded of MS906 Pro/MK906BT/MK906 Pro Diagnostic Tool with Advanced ECU Coding Bi-Directional Control 36+ Services is a one of our Autel MaxiCOM MK906S PRO 2024 Tools, you can buy Autel MaxiCOM MK906S PRO Scanner Upgraded of MS906 Pro/MK906BT/MK906 Pro Diagnostic Tool with Advanced ECU Coding Bi-Directional Control 36+ Services from chinaobd2.com.

Wholesale Top quality BENZ ECOM, Super DSP3+ Odometer Correction Tool, Scania VCI3, Autek IKey820 Key Programmer

images of Autel MaxiCOM MK906S PRO Scanner Upgraded of MS906 Pro/MK906BT/MK906 Pro Diagnostic Tool with Advanced ECU Coding Bi-Directional Control 36+ Services

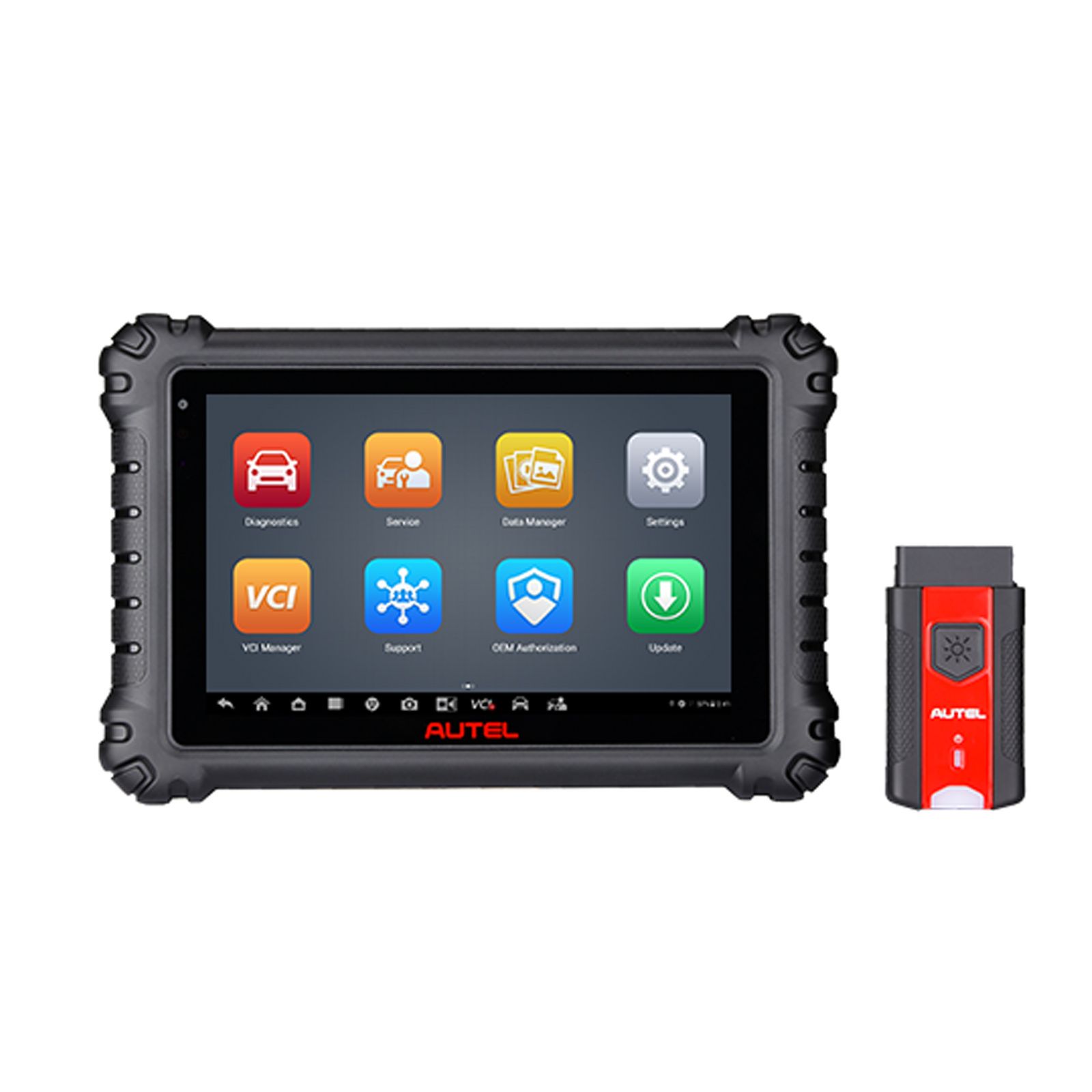

Autel MaxiCOM MK906S PRO Scanner

As Autel’s newest diagnostic scan tool of 2024 and an upgraded version of the MS906BT/MK906 Pro, the MK906S Pro features significant enhancements in both hardware and software. It runs on Android 10.0 with a Samsung Exynos octa-core processor, 4GB RAM, and 128GB storage for smooth performance. The device includes an 8-inch 1920×1200 high-resolution touchscreen, dual 16MP cameras (front and rear), and an 11,600mAh battery.

Key Highlights

1. No Blocking: Use the MK906S Pro anywhere in the world without restrictions.
2. Top-Level Hardware: The 2024-released MK906S Pro surpasses the MS906BT with an octa-core processor, 4GB RAM / 128GB ROM, 8.0" LED display, dual 16MP cameras, and an 11,600mAh battery.
3. OE-Level Full Systems Diagnosis: Perform OE-level analysis on ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB, and other onboard systems. Read and clear codes to turn off warning lights, view freeze frame data, and monitor live data streams in graphical format for quick vehicle health assessment.
4. 36+ Service Functions: Includes Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration, DPF Regeneration, and more.
5. ECU Coding: Like the MS908 and MK908, the MK906S Pro supports ECU coding—enabling matching, coding, and relearning of blank modules after replacement.
6. Battery Tester Compatibility: Works with the Autel BT506 Battery Tester to assess 12V vehicle batteries and evaluate the health of the electrical system.
7. 1-Year Free Software Updates: Register and log in to receive one year of free software upgrades. After expiration, the device remains fully functional even without renewal.
8. DoIP/CAN & CAN FD Support: Built-in support for the latest DoIP/CAN and CAN FD protocols—no separate adapter needed.
9. Autel Cloud Service: Access remote expert assistance, one-click help, device management, and intelligent report management via Autel Cloud.

Autel MaxiCOM MK906S Pro Main Features

• 8-inch, 1920 × 1200 high-resolution touchscreen tablet powered by a Samsung Exynos octa-core processor with 128GB storage and Android 10.0 OS
• Long-lasting 11,600 mAh rechargeable battery
• Dual 16MP cameras (front and rear)
• MaxiCVI V200 wireless Bluetooth Vehicle Communication Interface supporting the latest protocols
• Comprehensive diagnostics for U.S., Asian, and European vehicles from 1996 and newer
• AutoScan: Scans all available systems, including ADAS identification
• Read/Erase codes, view Freeze Frame and Live Data
• Perform Active Tests (bi-directional controls), Coding, and Adaptations
• AutoVIN/Scan VIN for rapid vehicle identification
• ADAS calibration support (Camera, Radar, LiDAR, Night Vision) with additional purchase
• Battery analysis capability* (requires MaxiBAS BT506 battery and electrical system tester)
• Cloud-based reports and data management
• Remote Expert support (coming soon)

36+ Reset Functions for Comprehensive Repair & Maintenance

The Autel MaxiCOM MK906S Pro Bluetooth scanner includes over 36 reset functions, such as:

• Oil Reset: Resets oil change indicators in engine and automatic transmission
• EPB: Supports electric parking brake pad replacement
• SAS: Calibrates steering angle sensor to wheel position
• DPF: Performs diesel particulate filter regeneration
• Brake Bleed: Executes ABS brake bleeding procedures
• IMMO: Manages IMMObilizer key functions
• BMS: Handles battery registration and reset
• Additional functions: Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp

Bi-Directional Control (Active Test)

The MaxiCOM MK906S Pro supports bi-directional control, enabling active tests to verify system or component integrity—such as ABS, windows, doors, and sunroofs—by reading ECU data or actuating components like solenoids and relays.

Note: Available tests vary by vehicle manufacturer, model year, and specific configuration. Only compatible tests appear in the menu. For compatibility verification, consult the Autel website or contact support directly.

Like the MaxiSys Elite II, MS908S Pro, MK908P, and MS906 Pro-TS, the MK906S Pro delivers full-system diagnostics across all major vehicle electronics—including ABS, SRS, TPMS, engine, Instrument Cluster, Transmission, BCM, Chassis, Steering, Airbags, A/C, IMMO, Air Suspension, and Cruise Control—allowing users to read/clear codes, view live and freeze frame data, and turn off warning lights.

Advanced ECU Coding – Customize Your Vehicle

The Autel MK906S Pro includes advanced ECU coding functionality, establishing a data link to the vehicle’s electronic control systems via the VCI for diagnosis, service, or coding. Users can run functional tests, retrieve trouble codes, event logs, live data, and perform ECU coding across multiple systems—including engine, transmission, and ABS.

ECU coding is increasingly essential for modern repairs. With the MK906S Pro, repair shops and advanced DIYers can:

• Activate hidden features or disable unwanted ones
• Adjust default settings (e.g., for VW, BMW, Audi, Skoda)
• Perform online coding using OEM server data (for BMW F/E chassis, Porsche, VW, Nissan, Infiniti)
• Execute offline coding by transferring data from original to new modules (for Ford, Mazda, Jaguar, etc.)
• Recode adaptive data during module replacement (for Honda, Chrysler, VAG, GM, Peugeot, Citroën, Mitsubishi, Suzuki, etc.)
• Simulate premium features and optimize driving performance

Note: ECU coding does not alter the underlying software—it only activates pre-existing, factory-programmed options. Availability varies by vehicle. Submit your vehicle details for compatibility confirmation before use.

Add-on Functions

The MaxiCOM MK906S Pro supports multiple interfaces for expanded functionality with accessories such as Inspection Cameras, HDMI Projectors, smartphones, PCs, USB drives, headsets, oscilloscopes, and extended SD cards.

1. Technological Breakthrough – FCA Auto Auth

Autel offers the FCA AutoAuth function at no cost for 2018 and newer FCA vehicles (Chrysler, Dodge, Jeep, Fiat) in the U.S., Canada, and Mexico—expanding service coverage and helping technicians grow their business.

2. WiFi Printing

Advanced Diagnostic Features

This highly advanced diagnostic scan tool, the MaxiCOM MK906S Pro, offers a super convenient feature—WiFi Printing. You can print reports directly from any page by clicking the "Print" button on your MaxiCOM MK906S Pro scanner and receive the report instantly. Unlike older Autel models such as the MaxiSys Elite, MK908, MK908P, and MS908S Pro, there's no need to connect to a PC for printing.

3. Battery Test with BT506

This OBD2 automotive diagnostic scan tool includes built-in battery testing capability. When paired with the optional Autel MaxiBAS BT506 Battery Tester, the MaxiCOM MK906S Pro can test all 6V and 12V batteries rated between 100–2000 CCA, including standard Flooded, AGM, AGM Spiral, EFB, and GEL types. It supports both in-vehicle and out-of-vehicle tests to assess the health of the battery, starter, and generator individually.

4. Compatible with Autel MaxiVideo MV108

When used with the MV108 digital inspection camera, the MaxiCOM MK906S Pro enables you to inspect hard-to-reach areas that are normally hidden from view. It can capture digital still images and videos, providing an economical solution for safely and quickly examining machinery, facilities, and infrastructure.

5. VAG Guided Function

The MaxiCOM MK906S Pro delivers detailed, step-by-step operational guidance to simplify complex procedures. It is compatible with Volkswagen, Audi, SEAT, and Škoda vehicles.

6. Autel Cloud Management

Through Autel Cloud Service, you can upload diagnostic data and reports to Autel Cloud Management without loss. Reports can be easily shared with customers via QR code, email, or text message, allowing them to view the information on their mobile devices anytime.

Product Features

Hardware

• 8-inch, 1920 x 1200 high-resolution touchscreen tablet
• Qualcomm 660 Octa-core processor with 128 GB storage
• Runs on Android 10.0 operating system
• Long-lasting 11,600 mAh rechargeable battery
• 16 MP front camera and 16 MP rear camera
• MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols

Software

• Comprehensive diagnostics for 1996 and newer U.S., Asian, and European vehicles
• AutoScan: Scans all available vehicle systems
• Read/Erase diagnostic trouble codes, view freeze frame data, and access live data
• Perform active tests (bi-directional controls), coding, and adaptations
• AutoVIN/Scan VIN for rapid vehicle identification

New Features (with additional purchase of the MaxiBAS BT506 battery and electrical system tester)

• Battery analysis capability
• Cloud-based reports and data management

Product Specifications

• Operating System: Android 10.0
• Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
• Memory: 4GB RAM & 128GB On-board Memory
• Display: 8-inch TFT-LCD with 1920×1200 resolution & capacitive touch screen
• Connectivity: Wi-Fi 2 (802.11a/b/g/n/ac 2x2 MIMO), Bluetooth v2.1 + EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (supports up to 256GB)
• Camera: Rear: 16 Megapixel, Autofocus with Flashlight; Front: 16 Megapixel
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
• Power and Battery: 11,600mAh 3.8V lithium-polymer battery; charging via 12V AC/DC power supply within 0°C to 45°C
• Input Voltage: 12V/3A Adapter
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Dimensions (W×H×D): 366.5 mm (14.43") × 280.9 mm (11.06") × 34 mm (1.34")
• Weight: 2.18kg (4.81 lb.)
• Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Model Comparison: Autel MS906S vs MS906BT vs MK906BT vs MS906 Pro vs MK906S Pro

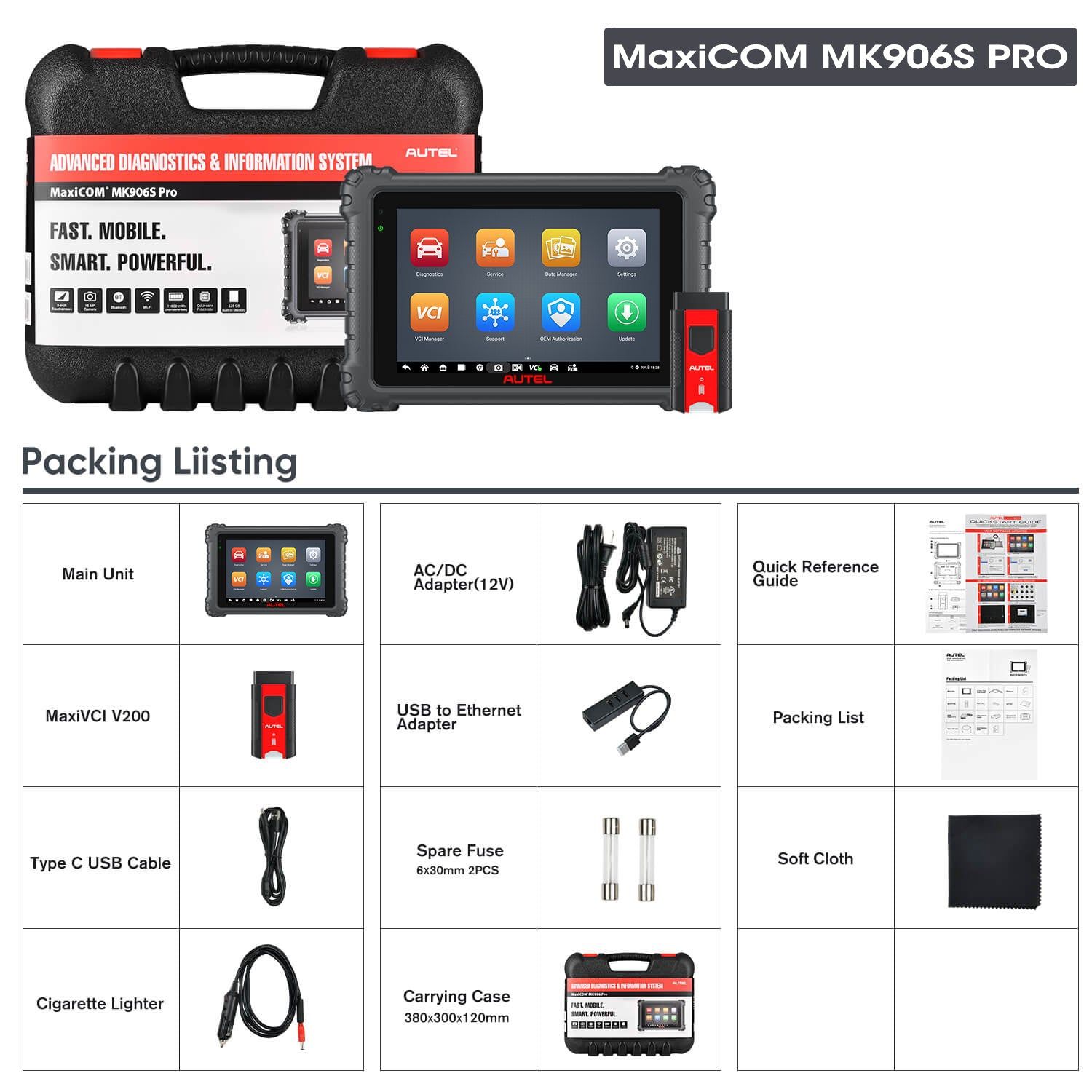

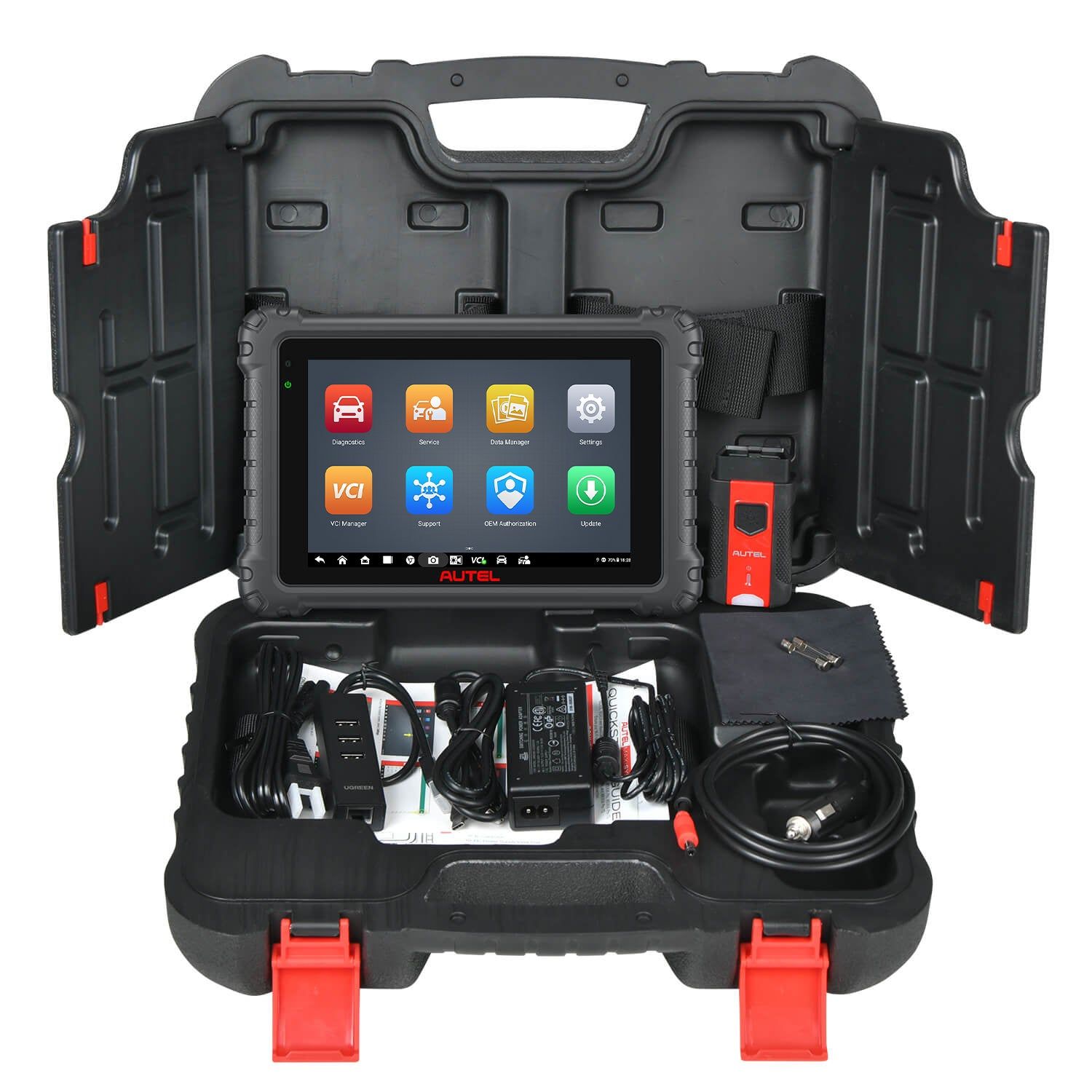

Package Includes

• 1 pc × main unit
• 1 pc × MaxiVCI V200
